Soft Shift Solenoid Directional Control Valve

HD-***-G02-DL-DC-S (Two-way)

Description of Model



Description of Model

HD

***

G02/G03

LW/DL

Directional Control Valve

Spool Type

Valve Size

Wiring Connection Type

High Flow Wet Pin Solenoid Direction Valve

Refer the list of Spool Function

G02 1/4"(D03)(NG06)

G03 3/8"(D05)(NG10)

LW：

Box Type

DL：

Din Type



B/E

S

DC/RF

Series

Special Type

Voltage(V)

B

High Efficiency & Low Current Solenoid Directional Control Valve

E

Standard High Flow Wet Pin Design Valve

S

Soft Shift Type

DC12

DC24

RF110

RF220



Feature

1.    It designed with the dual flow control and mechanical damping.

2.    The coil can reduce shock and vibration to run machine smoothly.

3.    The coil improves life time with protection circuit.

4.    Coil and RF connector are separate design can be replaced individually.

5.    The DC connector contains a surge protector.



Notes

1. The soft shift type only applies to DC, RF type coil, but without AC type.

2. The tube of soft shift type can’t interchange to the general type.

3. RFN coil need RF connector. Otherwise, would be a poor rectify efficiency, a poor start function and coil burnt.



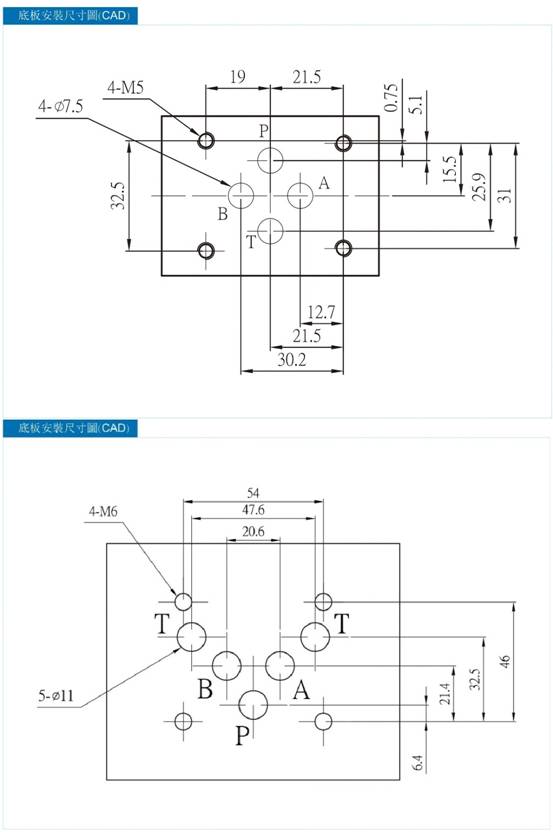

View & Component

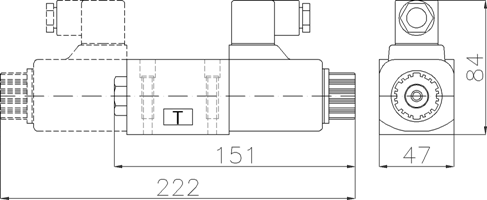

02LW-DC-One-way：

Weight1.5㎏

02LW-DC-Two-way：

Weight2.0㎏

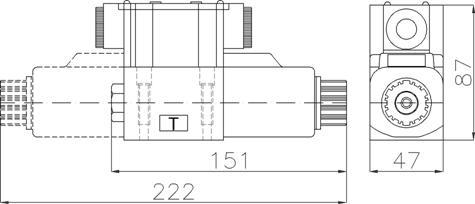

02DL-DC-One-way：

Weight1.4㎏

02DL-DC-Two-way：

Weight2.0㎏

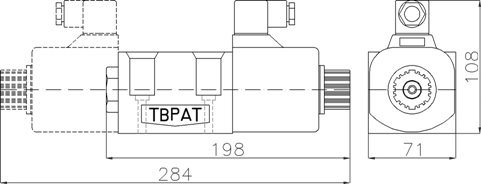

03LW-DC-One-way：

Weight4.0㎏

03LW-DC-Two-way：

Weight5.4㎏

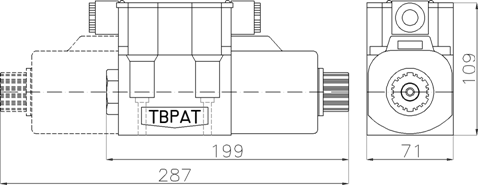

03DL-DC-One-way：

Weight4.1㎏

03DL-DC-Two-way：

Weight5.2㎏
